Double width scaffolding with Interval ladders & platform
- Material : Made of Aluminium 50mm dia & Thick 2mm round tube.
- Aluminium alloy used as per IS 733- Temper T6
- High Quality LM-6 material used for pressure die casting
- Width: 1350mm
- Length: 1800mm
- Height: Height of the Highest Point on the tower

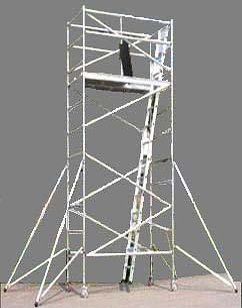

Aluminium Scaffolding Tower is the combination of ladder and work platform. Unlike ladder Scaffolding permits any person or persons to carry out overhead works of all natures in Civil/Electrical/Mechanical/Interior Decoration erection and routine maintenance of Plant & Machinery.
Scaffoldings are manufactured in various designs to suit required heights and platforms measuring from :
- 700 x 700 mm (Single Person)
- 700 x 1000 mm, 700 x 1800 mm
- 1300 x 1800 mm, (more than one person)
The Scaffolding components are basically Hard Aluminium Alloy. Frames are connected with quick release snap braces horizontally and diagonally to give required strength and stability, fully knock down type of modular concept assembled through snap lock mechanism.
Scaffoldings are manufactured in 2M, 3M, 6M, 9M, 12M, 15M, 18M and 20M heights. For which additional anchoring is must.
Platforms
The Aluminium platform is made up bo rectangular sections framed and welded to the chequered plate with ends consisting claws. The platform could be placed on the frames depending on working height as per requirement
Wheel
The wheel and brake unit consists of adjustable nut placed on thrust bearing to take axial thrust. The wheel has been fitted with radial bearing. When the mounting surface is uneven the adjustable nut is used for the alignment. The lever is provided to release or apply brakes.
Stabilizers
Four stabilizers are further connected the unit: spring loaded clamp assembly connects them to the ‘H’ frames to give a better stability required for the structure.
Snapgrip Coupling
Features
- Scaffolding is insulated by HDPC wheels and rubber bungs forstabilizers hence it is shock proof while working on any electricalinstallations. Care must be taken so that no other object is in contact with the Scaffolding
- caffolding assembly doesn’t require any tool kit.
- Additional 4/3/2M rung frames are available to suit working
heights. - A ladder is optional with every scaffold for convenience.

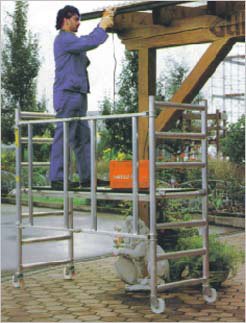

Aluminium Alloy Folding Scaffold
Handy aluminium alloy scaffold unit for low level work indoors and outdoor. Takes up minimum space in transport and storage. Quick and easy to erect and fold away without tools. Small enough to pass through doorways. Non-slip platform. Four 125 mm diameter braked swivel castors.
| Single width | Double width | |
| Platform height (M) | 0.99 | 0.99 |
| Overall height (M) | 1.80 | 1.80 |
| Working height (M) | 3.00 | 3.00 |
| Platform dimensions (M) | 0.70×1.80 | 1.35 x 1.80 |
| Load capacity (kg) | 200 | 250 |
| Parts list | ||
| Folding scaffold unit 1.8×0.70m with four 125 mm diameter brakedswivelcastors | 1 | |
| Folding scaffold unit 1.8m x 1.40m, with four 125 mm diameter braked swivel castors | 1 | |
| Platform 1.8m x 0.70m | 1 | 2 |
RAIL TROLLEY-ALUMINIUM & FRP
- The SUMER AXIS rail trolley is a system allows SUMER AXIS towers to be used on rail track & ground surface. Each trolley consists of a pair of wheeled telescopic frames adjustable to accommodate both the SUMER AXIS FRP and aluminium towers.
- SUMER AXIS FRP tower is made of high quality pultruded tubes which give stable & strong formation.
- SUMER AXIS FRP tower is an electrically and chemically inert is suitable for use in electrically sensitive areas.
- The system is ideal for overhead line work and bridge or tunnel inspection.
- The system can be quickly erected and dismantled by two-three person.
- The rail trolley is fitted with nylon wheels/M.S. Wheels for smooth running and non-conductivity making the system safe in electrical environments
- Towers can be built up to your required working height and can be used on track.
