Design No.AL-251/8804
ALUMINIUM STOOL TYPE LADDER
Description : Aluminium self supporting stool type folding ladder made out of high tensile aluminium Alloy along with Al. Platform fitted with hinge and rubber pads at lower bottom ends.
Side : Al. ‘C’ Shape section of size 66.6 x 31.7mm
Step : 25mm dia Non- Slippery corrugated Tubing on front and 25mm dia corrugated non slippery on back.
All Aluminium Raw Material used(Alloy & Temper) confirming to(IS-733-1975)(latest)
Description
HEIGHT AVAILABLE FT. (Mtrs.) All Size Available 4’Ft (1.22) to 24’Ft(7.32)
- 4’(1.22)
- 6’(1.83)
- 8’( 2.44)
- 10’(3.04)
- 12’(3.66)
- 14’(4.27)
- 16’(4.88)
- 18’(5.49)
- 20’(6.09)
- 24’(7.32)
Other Heavy Duty options are also available
FRP Ladders for same design are available

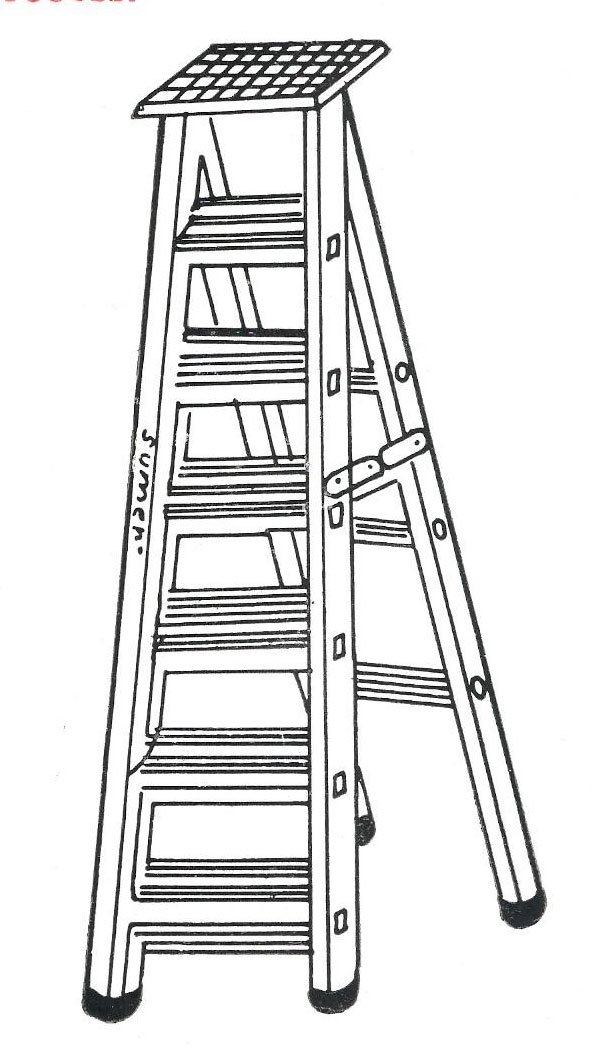

Design No.AL-201/8818
ALUMINIUM STOOL TYPE LADDER
Description : Aluminium self supporting stool type folding ladder made out of high tensile aluminium Alloy along with Al. Platform fitted with hinge and rubber pads at lower bottom ends.
Side : Al. ‘C’ Shape section of size 66.6 x 31.7mm
Step : 63mm dia Non- Slippery corrugated Tubing on front and 25mm dia corrugated non slippery on back.
All Aluminium Raw Material used(Alloy & Temper) confirming to(IS-733-1975)(latest)
Description
HEIGHT AVAILABLE FT. (Mtrs.) All Size Available 4’Ft (1.22) to 24’Ft(7.32)
- 4’(1.22)
- 6’(1.83)
- 8’( 2.44)
- 10’(3.04)
- 12’(3.66)
- 14’(4.27)
- 16’(4.88)
- 18’(5.49)
- 20’(6.09)
- 24’(7.32)
Other Heavy Duty options are also available
FRP Ladders for same design are available
Design No.AL-8821
ALUMINIUM STOOL FOLDING LADDER
Description : Aluminium self supporting stool type folding ladder made out of high tensile aluminium Alloy along with Al. Platform fitted with hinge and rubber pads at lower bottom ends.
Side : Al. ‘C’ Shape section of size 66.6 x 31.7mm
Step : 112mm wide one piece step edging Non- Slippery corrugated on front and 63mm wide one step corrugated non slippery on back.
All Aluminium Raw Material used(Alloy & Temper) confirming to(IS-733-1975)(latest)
Description
HEIGHT AVAILABLE FT. (Mtrs.) All Size Available 4’Ft (1.22) to 24’Ft(7.32)
- 4’(1.22)
- 6’(1.83)
- 8’( 2.44)
- 10’(3.04)
- 12’(3.66)
- 14’(4.27)
- 16’(4.88)
- 18’(5.49)
- 20’(6.09)
- 24’(7.32)
Other Heavy Duty options are also available
FRP Ladders for same design are available

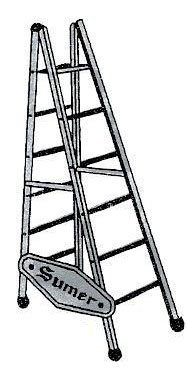

Design No.AL-351/8812
ALUMINIUM DOUBLE STEP LADDER
Description : Aluminium self supporting stool type folding ladder made out of high tensile aluminium Alloy along with Al. Platform fitted with hinge and rubber pads at lower bottom ends.
Side : Al. ‘C’ Shape section of size 66.6 x 31.7mm
Step : 63mm wide one piece step edging Non- Slippery corrugated on front and 25mm wide one step corrugated non slippery on back.
All Aluminium Raw Material used(Alloy & Temper) confirming to(IS-733-1975)(latest)
Description
HEIGHT AVAILABLE FT. (Mtrs.) All Size Available 4’Ft (1.22) to 24’Ft(7.32)
- 4’(1.22)
- 6’(1.83)
- 8’( 2.44)
- 10’(3.04)
- 12’(3.66)
- 14’(4.27)
- 16’(4.88)
- 18’(5.49)
- 20’(6.09)
- 24’(7.32)
Other Heavy Duty options are also available
FRP Ladders for same design are available
Design No.AL-451/8814
ALUMINIUM FACTORY STEP SELF SUPPORTING LADDER
Description : Aluminium factory step self supporting stool type ladder made of high tensile aluminium Alloy fitted with one tool tray on the top and one platform 3ft.Below from the top as working man platform along with hinge and rubber pads at lower bottom ends.
Side : Al. ‘C’ Shape section of size 66.6 x 31.7mm
Step : 63mm wide one piece step edging Non- Slippery corrugated on front and 25mm wide one step corrugated non slippery on back.
All Aluminium Raw Material used(Alloy & Temper) confirming to(IS-733-1975)(latest)
Description
HEIGHT AVAILABLE FT. (Mtrs.) All Size Available 4’Ft (1.22) to 24’Ft(7.32)
- 10’(3.04)
- 12’(3.66)
- 14’(4.27)
- 16’(4.88)
- 18’(5.49)
- 20’(6.09)
Other Heavy Duty options are also available
FRP Ladders for same design are available

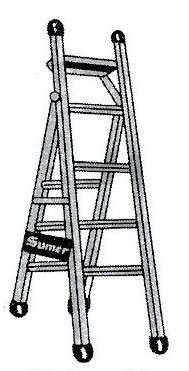

Design No.AL-8820
ALUMINIUM STOOL CUM STRAIGHT LADDER
Description : Aluminium stool cum straight ladder (convertable type)made out of Aluminium one piece step edging with platform on the top (when stool type).
Side : Al. ‘C’ Shape section of size 66.6 x 31.7mm
Step : 63mm wide one piece step edging Non- Slippery corrugated on front and 63mm wide corrugated non slippery on back.
All Aluminium Raw Material used(Alloy & Temper) confirming to(IS-733-1975)(latest)
Description
HEIGHT AVAILABLE FT. (Mtrs.) All Size Available 4’Ft (1.22) to 24’Ft(7.32)
| Stool Position | Straight Position |
| 5’(1.52) | 8’(2.44) |
| 6’(1.82) | 10’(3.04) |
| 7’(2.13) | 12’(3.66) |
Other Heavy Duty options are also available
FRP Ladders for same design are available

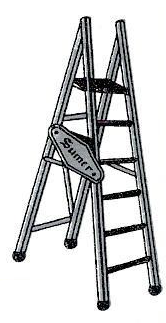

Design No.AL – 8817.
Aluminum Double Step Trestle Ladder
Side : Aluminium ‘C’ shapes section of size 66.6×31.7mm.
Step : Front side 63mm wide steps & back side 25mm dia round corrugated tube.
Fitted with Auto Folding Platform 1 Ft. below from top.
Bottom end with non slippery rubber pad
Material used as per IS: 733-1983.
