Design No. FRP 159

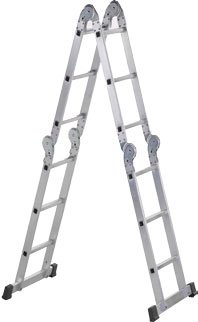

MULTI-PURPOSE LADDER
Features
- Light weight, versatile and compact.
- Can be used on stairs.
- Standard ladder outside width: 420 mm &
Pitch: 280 mm. - 500 mm wide with splayed legs
- When folded the ladder will fit into the boot of
a car.
Specifications
| Working height as lean-to ladder (m)* | 5.50 | 6.00 | 6.50 |
| Length as lean-to ladder (m)* | 3.59 | 4.15 | 4.71 |
| Length as stepladder (m)* | 1.75 | 2.02 | 2.30 |
| Height as work platform (m)* | 0.98 | 0.98 | – |
| Length as work platform (m)* | 1.55 | 2.11 | – |
| Overall base width (m)* | 0.83 | 0.83 | 0.97 |
| Dimensions, folded (m)* | 0.83 x 0.27 x 1.00 | 0.83 x 0.27 x 1.21 | 0.97 x 0.27 x 1.28 |
| Number of rungs | 4 x 3 | 2 x 3 + 2 x 4 | 4 x 4 |
| Weight (kg)* | 12.0 | 12.9 | 14.0 |
| Model no. | 3942055 | 3942060 | 3942065 |
