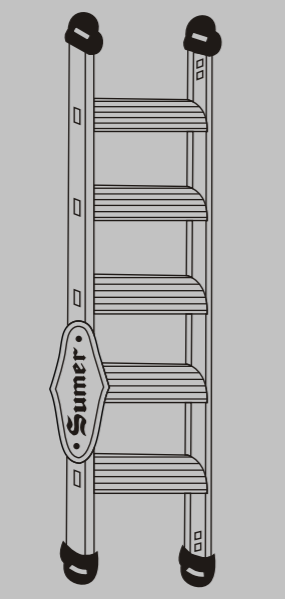

Design No. AL - 200
ALUMINIUM WALL SUPPORTING SINGLE LADDER WITH FLAT STEPS
Aluminium wall supporting single ladder made
out of AL. ‘C’ section of size 66.6 x 31.7 mm
and one piece flat step of size 63 mm. Ending
fitted with rubber pads at bottom and upper ends.
Optional on Extra Cost
Sides : 75 x 35 mm and Steps 63 mm.
Available in all sizes 3 Ft. To 15 Ft

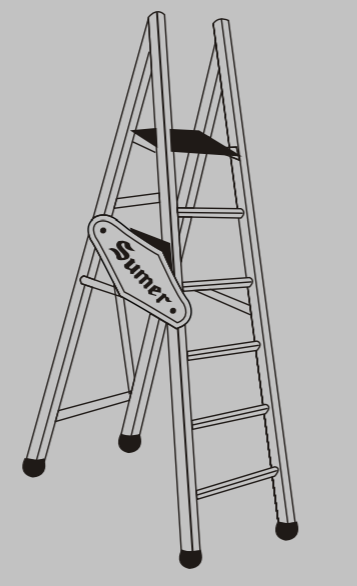

Design No. AL - 8817
ALUMINIUM DOUBLE STEP LADDER
Aluminium Double Step Trestle ladder made out of AL-’C’ Section of size 66.6 x 31.7 mm and wide steps of size 63 mm fitted and auto folding Platform fitted 1 Ft. Below from the Top with hinge and Rubber pads at ower bottom ends
Available in all sizes 3 Ft. To 15 Ft

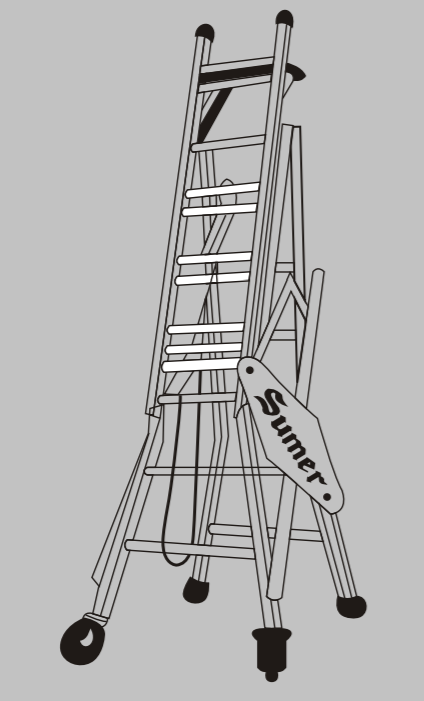

Design No. AL - 8815
ALUMINIUM TELESCOPIC TOWER LADDER
Aluminium Telescopic Tower ladder made out of AL. ‘C’ section of size 66.6 x 31.7 mm and steps of Alu. Round Corrugated tubing of size 25 mm with two wheel and Platform on Top.
Sizes Avaliable
| Closed Height FT. (Mtrs.) | Extended Height FT. (Mtrs.) |
| 3.66mtrs. (12’) | 6.096mtrs. (20’) |
| 4.27mtrs. (14’) | 7.32mtrs. (24’) |
| 4.88mtrs. (16’) | 8.54mtrs. (28’) |
| 5.49mtrs. (18’) | 9.76mtrs. (32’) |
| 6.096mtrs. (20’) | 10.98mtrs. (36’) |

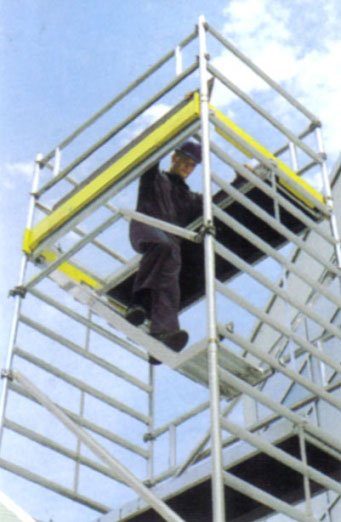

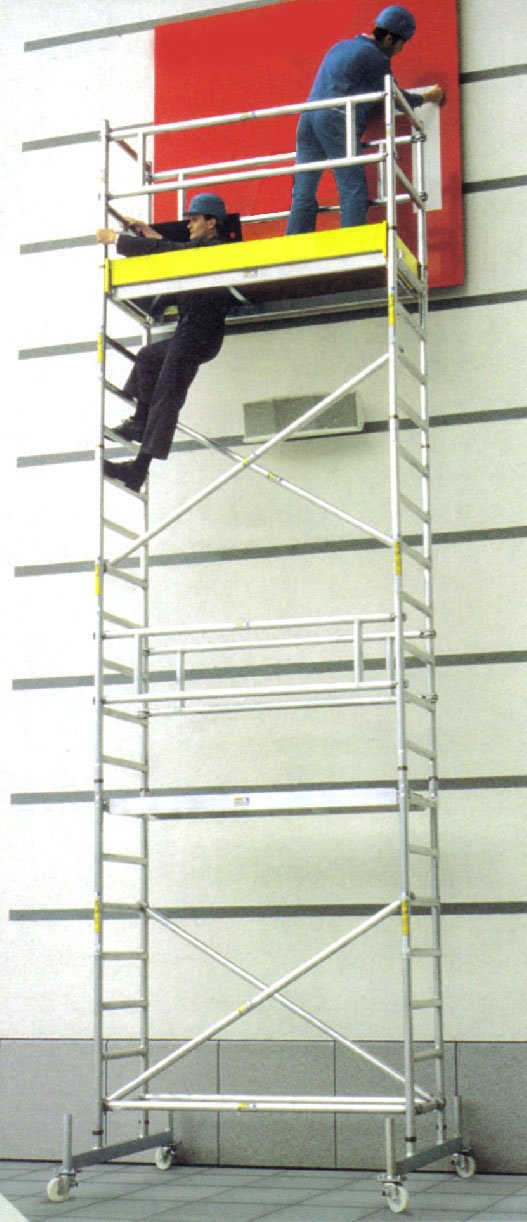

Narrow Width Scaffolding on Trolley

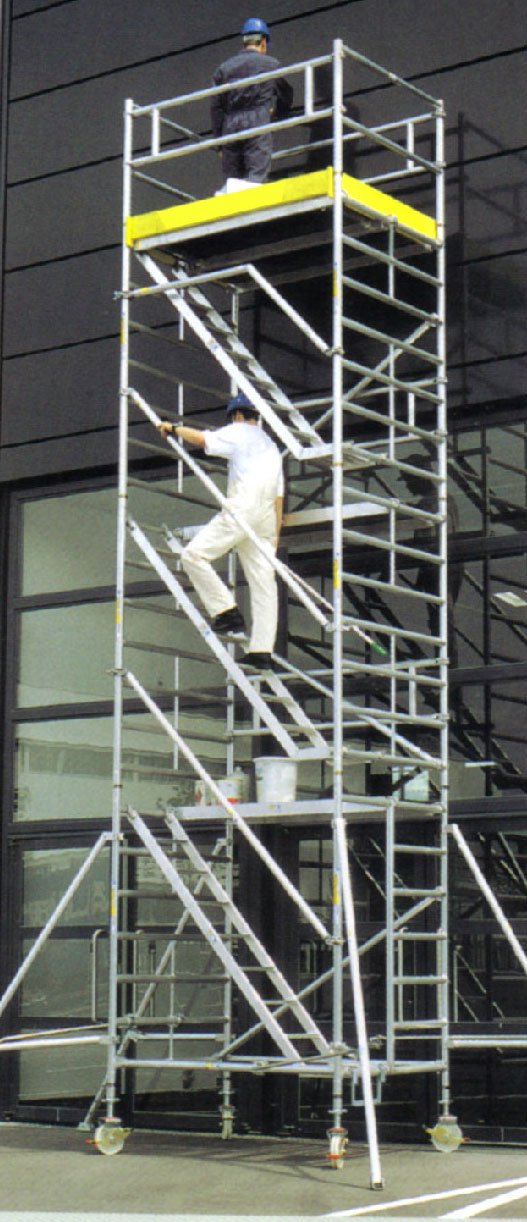

Double Width Scaffolding with interval Ladders & Trolley

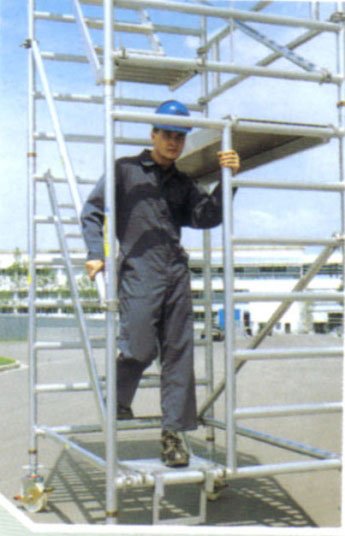

Door Enterance

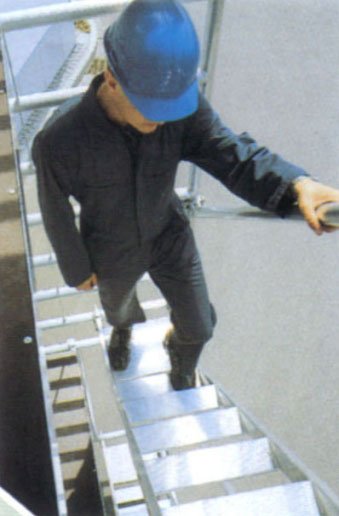

Easy Climbing Steps
