Design No AL-400/8807
ALUMINIUM WALL SUPPORTING SINGLE LADDER
Description : Aluminium wall supporting single ladder made out of high tensile aluminium Alloy and fitted with rubber pads at bottom and upper ends.
Side : Al. ‘C’ Shape section of size 66.6 x 31.7mm
Step : 25mm dia Non- Slippery corrugated Tubing .
All Aluminium Raw Material used(Alloy & Temper) confirming to(IS-733-1975)(latest)
Description
HEIGHT AVAILABLE FT. (Mtrs.) All Size Available 4’Ft (1.22) to 30’Ft (9.14)
- 4’(1.22)
- 6’(1.83)
- 8’( 2.44)
- 10’(3.04)
- 12’(3.66)
- 14’(4.27)
- 16’(4.88)
- 18’(5.49)
- 20’(6.09)
- 24’(7.32)
Other Heavy Duty options are also available
FRP Ladders for same design are available
Design No AL-400/8808
ALUMINIUM WALL SUPPORTING SINGLE LADDER WITH HOOK
Description : Aluminium wall supporting single ladder made out of high tensile aluminium Alloy and fitted with rubber pads at bottom and upper ends.
Side : Al. ‘C’ Shape section of size 66.6 x 31.7mm
Step : 25mm dia Non- Slippery corrugated Tubing .
All Aluminium Raw Material used(Alloy & Temper) confirming to(IS-733-1975)(latest)
Description
HEIGHT AVAILABLE FT. (Mtrs.) All Size Available 4’Ft (1.22) to 30’Ft (9.14)
- 4’(1.22)
- 6’(1.83)
- 8’( 2.44)
- 10’(3.04)
- 12’(3.66)
- 14’(4.27)
- 16’(4.88)
- 18’(5.49)
- 20’(6.09)
- 24’(7.32)
Other Heavy Duty options are also available
FRP Ladders for same design are available
Design No AL-400/8811
ALUMINIUM WALL SUPPORTING SINGLE LADDER WITH HOOK
Description : Aluminium wall supporting single ladder made out of high tensile aluminium Alloy and fitted with rubber pads at bottom and upper ends.
Side : Al. ‘C’ Shape section of size 66.6 x 31.7mm
Step : 63mm wide one piece step edging Non- Slippery corrugated .
All Aluminium Raw Material used(Alloy & Temper) confirming to(IS-733-1975)(latest)
Description
HEIGHT AVAILABLE FT. (Mtrs.) All Size Available 4’Ft (1.22) to 30’Ft (9.14)
- 4’(1.22)
- 6’(1.83)
- 8’( 2.44)
- 10’(3.04)
- 12’(3.66)
- 14’(4.27)
- 16’(4.88)
- 18’(5.49)
- 20’(6.09)
- 24’(7.32)
Other Heavy Duty options are also available
FRP Ladders for same design are available

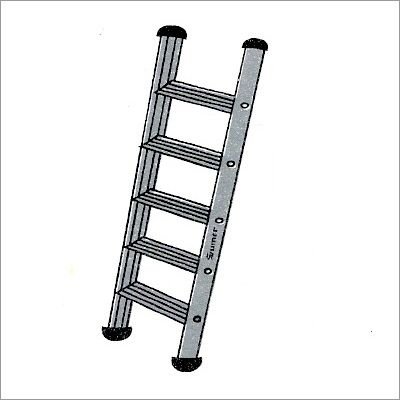

Design No.AL-8805
ALUMINIUM WALL SUPPORTING SINGLE LADDER
Description : Aluminium wall supporting single ladder made out of high tensile aluminium Alloy and fitted with rubber pads at bottom and upper ends.
Side : Al. ‘C’ Shape section of size 90 x 30mm
Step : 112mm wide one piece step edging Non- Slippery corrugated .
All Aluminium Raw Material used(Alloy & Temper) confirming to(IS-733-1975)(latest)
Description
HEIGHT AVAILABLE FT. (Mtrs.) All Size Available 4’Ft (1.22) to 30’Ft (9.14)
- 4’(1.22)
- 6’(1.83)
- 8’( 2.44)
- 10’(3.04)
- 12’(3.66)
- 14’(4.27)
- 16’(4.88)
- 18’(5.49)
- 20’(6.09)
- 24’(7.32)
Other Heavy Duty options are also available
FRP Ladders for same design are available
Design No.AL300/8819
ALUMINIUM COLLAPSIBLE HEAVY STEP FOLDING LADDER
Description : Aluminium collapsible heavy step abridge type folding ladder made out of AL. Corrugated tubing with rubber pads on both ends.
Side : Al. ‘C’ Shape section of size 66.6 x 31.7mm
Step : 25mm dia Non- Slippery corrugated Tubing .
OPTIONAL
Side : Al. ‘Channel’ Shape section of size 90 x 30mm
Step : 63mm wide one piece step edging Non- Slippery corrugated .
All Aluminium Raw Material used(Alloy & Temper) confirming to(IS-733-1975)(latest)
Description
HEIGHT AVAILABLE FT. (Mtrs.) All Size Available 4’Ft (1.22) to 30’Ft (9.14)
- 4’(1.22)
- 6’(1.83)
- 8’( 2.44)
- 10’(3.04)
- 12’(3.66)
- 14’(4.27)
- 16’(4.88)
- 18’(5.49)
- 20’(6.09)
Other Heavy Duty options are also available
FRP Ladders for same design are available
Design No.AL – 200/8811
Aluminium Wall supporting Single Ladder
Side : Aluminum ‘C’ section of 66.6×31.7mm as per IS: 733-1983 temper T-6.
Step : Aluminum steps 63mm non-slippery corrugated round tubing.
Fitted with rubber shoes at upper and lower ends.
